PH-CNBM Series
PH-CNBM Series
Available in three lengths with a slim form factor, can be used as top lighting and side lighting with full-cycle spectrum
| Caractéristique | Value |
|---|---|
| Puissance | 50W |
| Model No. | PH-CNBM-6 |
| Dimensions | 23.8*2.1*1.3inch 604*54*33mm |
| Weight | 1.54lbs 0.7kg |
| Spectrum | PPF | Efficacy |
|---|---|---|
| FSM FSG FSMUV |
115 µmol/s | 2.3 µmol/J |
| FSG | 125 µmol/s | 2.5 µmol/J |
| FSM R9B1 FSMUV |
105 µmol/s | 2.1 µmol/J |
| R9B1 | 135 µmol/s | 2.7 µmol/J |
| Caractéristique | Value |
|---|---|
| Puissance | 85W |
| Model No. | PH-CNBM-12 |
| Dimensions | 47.2*2.1*1.3inch 1200*54*33mm |
| Weight | 1.98lbs 0.9kg |
| Spectrum | PPF | Efficacy |
|---|---|---|
| FSM FSG FSMUV |
196 µmol/s | 2.3 µmol/J |
| FSG | 212 µmol/s | 2.5 µmol/J |
| FSM R9B1 FSMUV |
179 µmol/s | 2.1 µmol/J |
| R9B1 | 229 µmol/s | 2.7 µmol/J |
| Caractéristique | Value |
|---|---|
| Puissance | 130W |
| Model No. | PH-CNBM-16 |
| Dimensions | 63*2.1*1.3inch 1600*54*33mm |
| Weight | 2.64lbs 1.2kg |
| Spectrum | PPF | Efficacy |
|---|---|---|
| FSM FSG FSMUV |
299 µmol/s | 2.3 µmol/J |
| FSG | 325 µmol/s | 2.5 µmol/J |
| FSM R9B1 FSMUV |
273 µmol/s | 2.1 µmol/J |
| R9B1 | 351 µmol/s | 2.7 µmol/J |

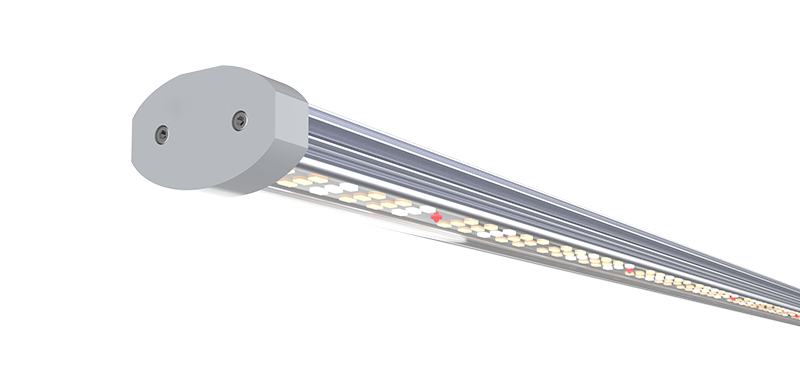

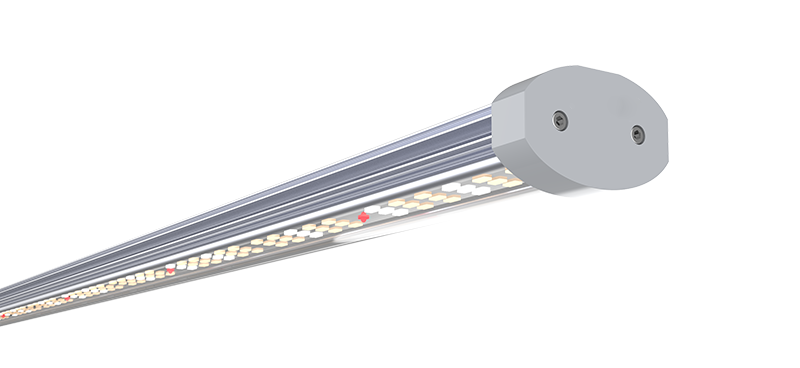

Images du produit
